Full-Depth Pavement Repair Goes Quickly with Rapid Set Cement

Utah DOT restores deteriorated concrete in and around Salt Lake City without affecting commuters' morning drive.
Posted on 10/07/2020

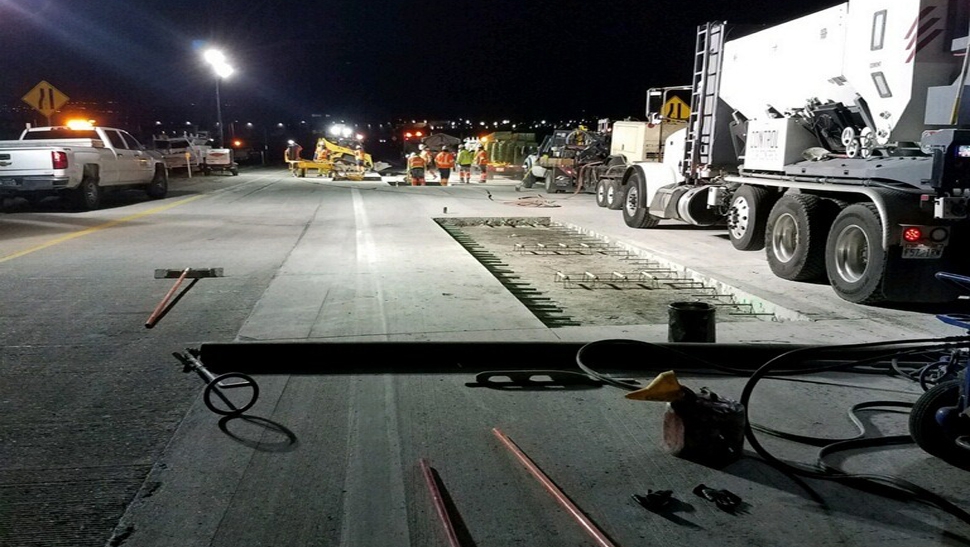

Project image

The Utah Department of Transportation (UDOT) undertook concrete pavement renewal on SR-201 in spring 2020, with a goal of repairing deteriorated areas that had experienced general wear and tear. Repair areas were located on a stretch of SR-201 between the I-80 interchange and the Jordan River, with most being concentrated in or close to metropolitan Salt Lake City.

Concrete renewal work included diamond milling for smoothness as well as panel replacement, also known as full-depth repair. Full-depth repair involves removing and replacing all or part of a concrete slab with the depth of removal extending to the bottom of the slab. It fixes localized areas of severe distress, such as cracks and spalls, and restores roads to good driving condition.

To complete full-depth repairs on SR-201, 760 cu. yds. of Rapid Set® Cement concrete (250 tons) were used. The cement, aggregate and water were mixed with a volumetric mixer, finished with floats and a screed and cured with poly-alpha-methyl-styrene (PAMS) concrete curing compound.

The contractor, Dry Creek Structures, self-performed the work and found Rapid Set allowed panels to be quickly poured. The concrete met UDOT’s specification for rapid-setting hydraulic cement concrete, including a minimum of 5% to 7.5% air content, compressive strength at four hours of a minimum of 4000 psi, flexural strength at three days of 550 psi, and a minimum 650 psi flexural strength at 28 days. Maximum drying shrinkage was 0.04% at four hours.

UDOT uses bulk Rapid Set in time-sensitive areas, where it enables them to keep traffic moving. The SR 201 sections that required repair experience extremely high traffic volume, as they accommodate commuter and truck traffic. The traffic window for the contractor to perform work was from 10 p.m. to 6 a.m. nightly. In that window, demolition, installation, and curing the concrete all had to be completed in time for the morning commute. Rapid Set was the only choice to meet these strict traffic limitations and 3000 psi for opening strength was achieved.

Project at a glance
  • Project Type: Infrastructure (Roadways)
  • Application: Full-depth panel replacement
  • Location: Salt Lake City, Utah
  • Size: 760 cu. yds.
  • Dates: Spring 2020
  • Owner: Utah DOT
  • Contractor: Dry Creek Structures
  • Product: Rapid Set® Cement
